Hp Switch Stacking

HP "stacking" means connecting the switches together for management purposes so they respond to a single IP interface.

Hp switch stacking. The performance of Ethernet switches is important in network design, for it will affect the whole network system working. A switch stack is a set of Catalyst 3750 switches connected through their Cisco StackWise ports. Stacking Cable (6) Availability.

Switch stacking vs trunking. Insbesondere wenn der Einsatz eines hohen Stack-Troughput und 10GbE Switches keine geeigneten Optionen darstellen. HP ProCurve Stack Management operates on these HP ProCurve Switches:.

If you have a switch that should not be part of a stack anymore, use the "stacking disable" command from the configure prompt. Show stacking Stack ID :. I have seen the reload slot id command, but the slot is referencing the switch device or something else?.

Additionally you’ll need a stacking module for every switch in the stack, and stacking cables. 2512 and 2524 (Series 2500) 4104GL and 4108GL (Series 4100GL) Virtual Stacking Terms. 10G Expansion Module slots 5.

In stacking, all switches connect in a series making a ring. They are agile, scalable, and secure and can be easily integrated into your existing Aruba infrastructure. Cable the new switch, following the established order of stacking cables.

The stack master and the other switches in the stack are stack members. The stack cannot cross a router. HPE network switches are built to handle today’s network traffic as well as the inevitable future increase in traffic.

IRF (Intelligent Resilient Framework) is a proprietary virtualization/stacking technology used in some HPE switches. For this video the following web site has been used. Adding a switch to a stack as a new member.

At reload, the switch will load the persistent startup configuration, which you saved in step 1. For more information see the What is a stack master and how does it work with my managed switch?. One of the Catalyst 3750 switches controls the operation of the stack and is called the stack master.

This picture shows the back of an 51 switch with connected SFP+ modules. The HPE 1950 Switch Series is a family of smart web-managed Gigabit switches with 10GbE uplinks for small business customers needing advanced high-performance connections. Financing and service offerings available through Hewlett-Packard Financial Services Company and its subsidiaries and affiliates (collectively HPFSC) in certain countries and is subject to credit approval and execution of standard HPFSC documentation.

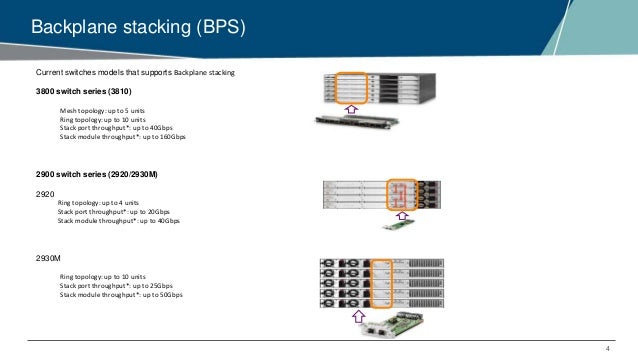

The first thing I learned, was there’s no dedicated stacking cable for them. The HP switches have a 10Gbs backpane link between them. Backplane stacking (BPS), where specific stacking modules (usually on the back of the switch) are used with specific.

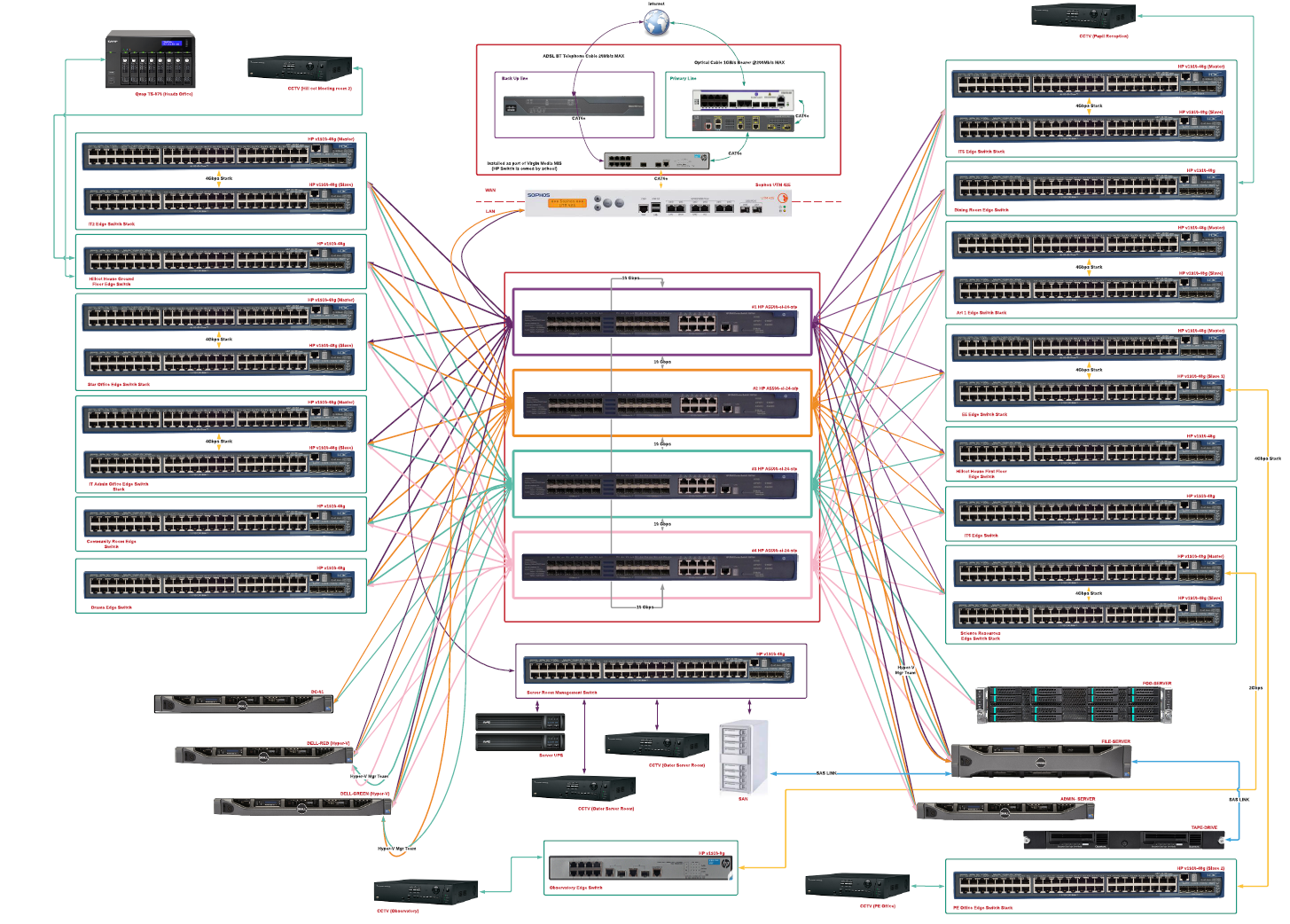

Switch stacking is to combine multiple switches to make them work together and operate as one logical unit. Expanding bandwidth One can increase the uplink bandwidth of an edge switch by adding another switch to form a stacking system with the existing edge switch and can configure multiple physical links of the member devices as an aggregation group to increase the bandwidth of the link to the core switch. ProCurve Networking by HP today expanded its Layer 2 stackable Ethernet product line with the introduction of three series of switches that offer high reliability and cost-effective performance.

Auch wenn der Cat 3850 Switch umfassende Verbesserungen durchlaufen hat, können die Kosten der Hardware hoch ausfallen. All members of the stack must be on the same subnet;. Configuring a stack Creating a stack.

My client has 4x HP 2610-48G-PWR switches in their network, and they would like to stack them together. HP 29 Switch Series Rear (All) 1. The deterministic method — by the sequence in which switches are booted.

Those cables are connected to specific posts of the switches, depending on the type of stacking:. The new switch should join as a member (never as master;. The port density of a stack unit is the sum of the combined ports and the switching capacity will be much augmented.

The existing master of the stack should not change). "Stacking" means connecting the switches via a dedicated interface that extends the internal switch fabric so that the switches can communicate at full backplane speed (say 100 Gbps). Build a network that you can scale with high performance stacking, multi-gigabit Ethernet, and resilient PoE power which includes high power 802.3bt - ideal for 802.11ax Wi-Fi deployments.

Simplifying Switch Stacking with the Aruba CX Mobile App. The benefits of jumping to ~£900 was justifiable, however. This video provides an overview of hardware and software configuration of Aruba 3810M backplane stacking.

S t a c k i n g For HP 29 switches that are in a stack, the Mode select button on every N o t e s :. A special stacking cable is used to join all participants. Grounding lug mounting hole 4.

KA.15.03.0000x Mbr ID Mac Address Model Pri Status --- ----- ----- --- ----- 1 1cc1de-4d87c0 HP J9573A 3800-24G-PoE+-2SFP+ Switch 128 Commander 2 1cc1de-4dc740 HP J9573A 3800-24G-PoE+. May have older product names and model numbers. Power Supply and AC power connector 3.

Stack Cable for stacking of HP 29 series. Manuallypulled by a Commander. Designed for companies of all sizes, the ProCurve Switch 2810 Series, 1800 Series and the 2510-24 switches are easy to set up, use and maintain.

Aruba, a Hewlett Packard Enterprise company 1,529 views. The 1950 Switch Series includes four switches:. HPE 1950 24G 2SFP+ 2XGT Switch (JG960A) HPE 1950 48G 2SFP+ 2XGT Switch (JG961A) HPE 1950 24G 2SFP+ 2XGT PoE+ Switch (JG962A) HPE 1950 48G 2SFP+ 2XGT PoE+ Switch (JG963A).

Stacking the switches is very good for high availability environments (one ESX server can connect to multiple physical devices within one IRF stack) but also good for extending edge switches. For a full length explanation of stacking, please view the video below:. No, IRF (virtual stacking) on HPE OfficeConnect 1950 Switch Series can be deployed or using whatever mix of:.

Hi Experts, I would like to know if, lets say, we have 5 or 6 switches in a stack, but I want to reload all the devices at once, which command should I use?. You choose which member. HP ProCurve Stack Management (termed stacking in this online Help) allows the configuration of a group of switches so that they appear as one unit with one IP address.

The kit consists of two HP ProCurve Gigabit Stacking Transceivers and a 0.5-meter shielded twisted-pair Stacking Cable. Other Technical Details Brand HP Item model number J9733A#ABA Item Weight 5.3 ounces. QuickSpecs Aruba 3810M Switch Series Overview Key features Page 2 • Advanced Layer 3 switch series with backplane stacking, dynamic segmentation, low latency and resiliency • Advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central.

It has been developed originally by H3C, but later HPE acquired H3C. The HP ProCurve Switch 2424M Gigabit Stacking Kit (HP J4116A) is used to provide a 1000 Mbps stacking connection between two HP ProCurve Switch 2424M units. 0d 0h 5m Software Version :.

HP ProCurve Switch Gigabit Stacking Kit Installation Guide. Like the HP 3800 Switch Series, configuration of the HP 29 is also plug and play. 1cc1de -4d87e5 Stack Topology :.

HP Networking stacking enables adding switches to the stack while the stack. Reset And Clear Buttons You can also disable these buttons by using the front-panel-security command. A powerful distributed architecture supports scalable, non-blocking performance to future-proof your network for tomorrow’s unpredictable demands.

HP - Stacking cable - 3 m - for HP 29-24G Switch, 29-24G-POE+ Switch, 29-48G Switch, 29-48G-POE+ Switch - Manufactured by Hewlett-Packard (HP)). If you do manage to loose the connection to the switch or otherwise completely lock it, don't worry!. Switches that are part of a stack behave as one single device.

They are agile, scalable and secure and can be easily integrated into your existing Aruba infrastructure. As IRF links, to interconnect the switches and HP Meshed Stacking and 29 Stacking use dedicated stacking modules and interfaces to accomplish the same objective. HP 2530 Switch Series Product Tour - Duration:.

Part of those benefits was the ability to stack the core switches. Catalyst 3650 Switches- Kosteneffektives und Feature reiches Stacking:. You can reconfigure a Commander to.

The stacking cables can be configured in two different topologies, chain or ring. Product information Technical Details. Verify, by monitoring the master switch console port, that the new switch successfully joins the stack by issuing the show switch command.

Measuring 1.6 feet, this switch stack cable facilitates easy and convenient connection. If you did. In the ring configuration, a link or switch failure creates a chain topology, which enables continued operations.

HPE Switch Stacking Cables. IRF allows us to interconnect several switches and manage them as a single device. Forming of the Switch Stacking.

Compared switch stacking vs uplink, switch uplink only provides very limited bandwidth increase. This provides a single point of IP management for all switches in the stack. Viewing stacking member status.

Stacking is something that I toyed around with in my university days, using Cisco stacking cables to stack. In the default conf iguration, a Candidate joins only when. They simply use a 10Gb (Twinax / DAC) cable.

I've got a 2x Cisco 3750 switches in a stack and 2x HP Procurve 2910al-48G. The series has 2 standard and 2 PoE+ models, 24- and 48-GbE ports, each with 2 10GBASE-T and 2 10G SFP+ high-bandwidth ports. Invest in networking switches.

8000M, 4000M, 1600M, 2424M and 2400M with software update C.08.XX or later installed;. The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise access, aggregation, core, and top of rack deployments. Switch in the stack controls the LED mode for all the switches in the stack.

You need 2, 3 or 4 29 series switches to form a stack. Stacking Module Slot Key Features High-performance Gigabit Ethernet access switch Four optional 10GbE (SFP+ and/or 10GBASE-T) ports. Two standard models and two PoE+ models in 24- and 48-port configurations.

The HP 1950 Switch Series consists of smart web-managed Gigabit Ethernet switches with 10-Gigabit uplinks, for advanced small business customers needing high-performance connections to servers and network storage. Front-plane stacking (FPS)-VSF, where usually are used standard Ethernet ports to. Or if you want to join it to a new stack, use the "stacking factory-reset" command from the configure prompt.

Partner (6) 0 items. They also have some other HP switches in their rack, and at the worst point, some network connections have to hop through 6 switch uplinks to reach the "core switch", which is really just an access switch at the edge of the network. Know more information about switch stacking here:.

I cross wired all the 4 switches. Depending on how Commander and Candidate switches are configured, Candidates can join a stack either automatically or by a Commander manually adding (“pulling”) them into the stack. The switch that controls the operation of the stack is the stack master.

Fragment Active Uptime :. Ask Question Asked 3 years, 4 months ago. What will happen is the switch will reload after the set amount of time since there's no one there to cancel the command.

A switch stack is a set of up to 8 switches connected through their stacking ports. The HP 29 Switch Series can stack up to four switches in a chain or ring topology. Switch stacking vs uplink, as two critical methods to increase switch ports, has their own benefits and drawbacks.

And also created a trunk trk2 on both the switches. I need to create a 4 link Etherchannel between the Cisco stack and the 2x HP switches. Each switch in a stack should be the same model, so these will need two stacks!) I work on the occasional HP/Aruba core switch, but it’s been a while since I did any work on distribution switches like these.

Stack - A group of switches consisting of a single Commander and up to fifteen Members. This command will require that the switch reboot. Only the switches which either have a stacking module or have a modular slot to install a stacking module can be used in the Switch Stacking.

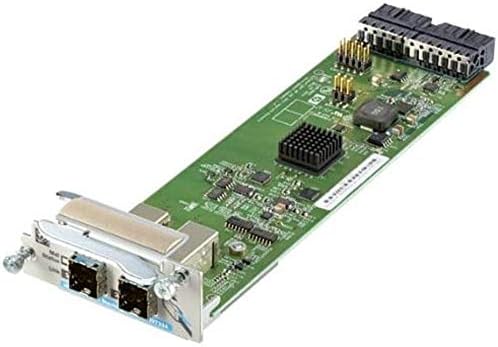

The HP 29 2-Port Stacking module is used with the HP 29 Switch Series switches to allow stacking in a system of up to 4 switch units. Cc1-de4d87c0 MAC Address :. As a result, a stacking solution shows the characteristics and functionality of a single switch, while having an increased number of ports.

I created the Etherchannel on Cisco stack. Invest in networking switches. In some cases, users can benefit from using both switch stacking and uplink.

15 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. Therefore, to achieve high performance, network managers may use different methods to improve performance of network switches, which cause a hot topic:. It is designed for use with an array of switches including the Aruba 29-24G, 29-24G-PoE+, 29-48G and 29-48G-PoE+.

Power up the new switch. GUI Configuration - HP Switch 5900. Chain Stack Status :.

A stack is a network solution composed of two or more stackable switches. Given the fact that previously, we've been paying ~£0 for a HP 19 switch, a jump to £2.5k is a bit much. HP IRF technology is leveraged across the HP switch portfolio, including for the HP 12xxx, 10xxx, 75xx, 58xx, 55xx, 51, and 3600 v2 Switch Series.

The 2930M Layer 3 network switches are easy to deploy, provision and manage using network management tools like Aruba AirWave and Aruba Central. The HP ProCurve Switch Gigabit Stacking Kit (HP J4116A) is used to provide a 1000 Mbps stacking connection between any two HP ProCurve switches that support the kit. HPE network switches are built to handle today’s network traffic as well as the inevitable future increase in traffic.

For instance, Im currently in t. Stack Exchange network consists of 176 Q&A communities including Stack Overflow, the largest, most trusted online community for developers to learn, share their knowledge, and build their careers. What Is Switch Stacking?.

Its black, patterned design makes the cable look stylish and compliments your workstation. The kit consists of two HP ProCurve Gigabit Stacking Transceivers and a 0.5-meter shielded twisted-pair Stacking Cable. HP Procurve Switch Gigabit Stacking Kit Installation Guide.

A stacking module has two ports.
